Cut Crease
Cut Crease
Cutting rules from Japanese steel rule manufacturer TSUKATANI has been a leader in terms of quality since 1951. These are achieved through specially developed grinding processes, compliance with very tight tolerances and the use of best Japanese steel.

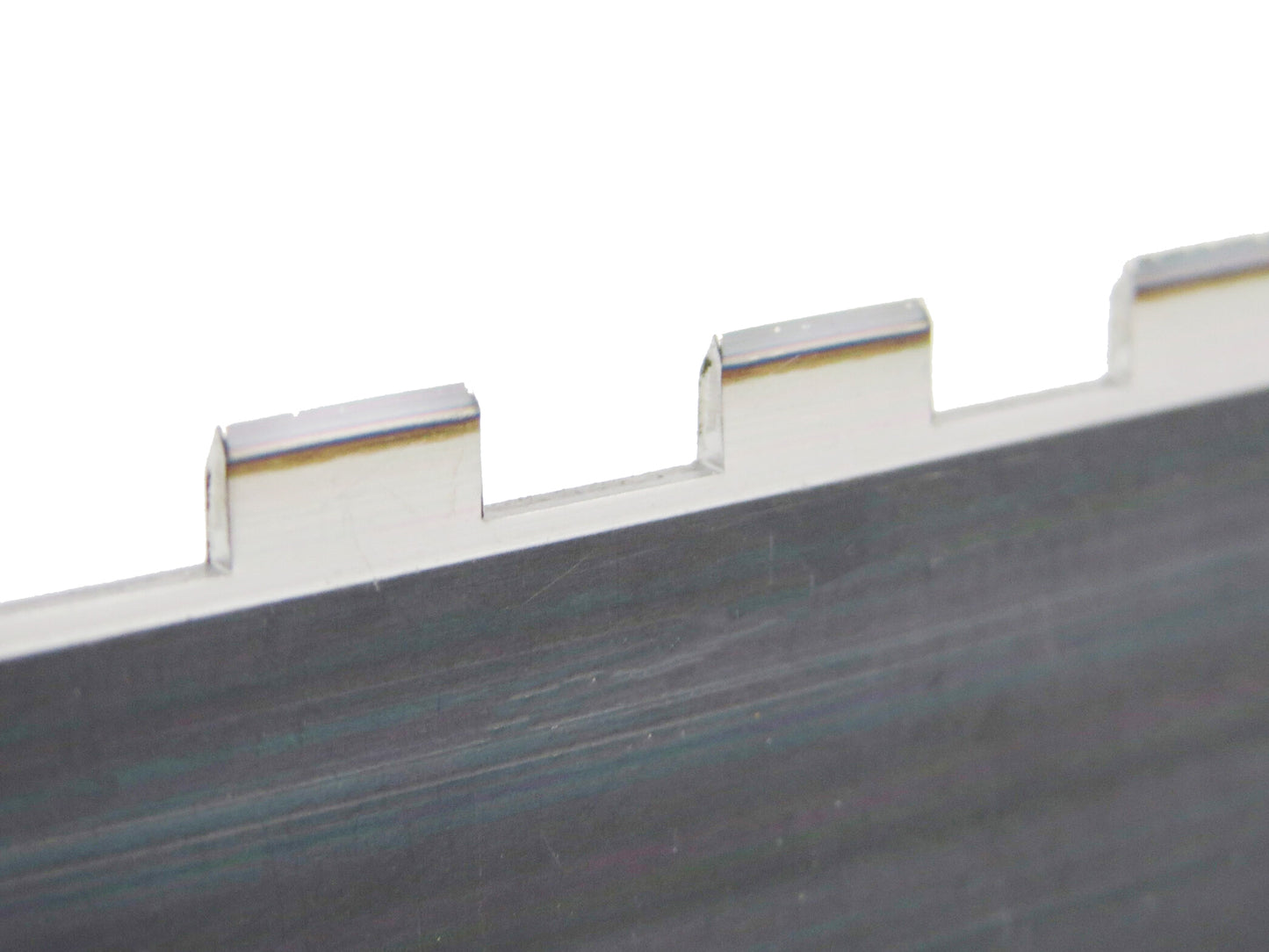

Cut Crease Rules are used to achieve bending edges and thus simplify folding at creases. The combination rules are available in any cut and crease height. The burr-free creasing component minimises the risk of ceiling breakage.
Share
Creasing line
- Application: Production of bending edges → simplifies folding at creases
- Available in every cutting and creasing height
- Burr-free creasing → minimizes the risk of cover breakage
Properties
- Thickness: 2 pt (0.71 mm) | 3 pt (1.05 mm)
- Height: up to 23.8 mm
- Hardened cutting edge = longer service life
- Polished cutting edge = Less angel hair and dust formation
- Decarburized body surface = High flexibility
Hardness
- Body hardness: 345 HV / 35.5 HRC
- Cutting edge hardness: 620 HV / 56.3 HRC
Availability: Yard goods & coils
