Cutting Rule Plus

Cutting Rule Plus

Request offer

Cutting rules from Japanese steel rule manufacturer TSUKATANI has been a leader in terms of quality since 1951. These are achieved through specially developed grinding processes, compliance with very tight tolerances and the use of best Japanese steel.

Cutting Rule Plus with micro-fine grinding is characterised by a mirror polish of the cutting edges. This reduces the diecutting pressure and prevents the printed material from peeling or tearing off.

View full details

Type Plus – The High-End Rule

  • Version: micro ginding
  • Mirror finish cutting edge to decrease the cutting force required
  • Ideal for preventing peeling and tearing off for printed material

Application Overview Cutting Rules

Characteristics

  • Thickness: 2 pt (0.71 mm) | 3 pt (1.05 mm)
  • Hardened cutting edge = longer service life

Degree of hardness

  • Body hardness: 345 HV / 35,5 HRC
  • Cutting edge hardness: 650 HV / 57,8 HRC

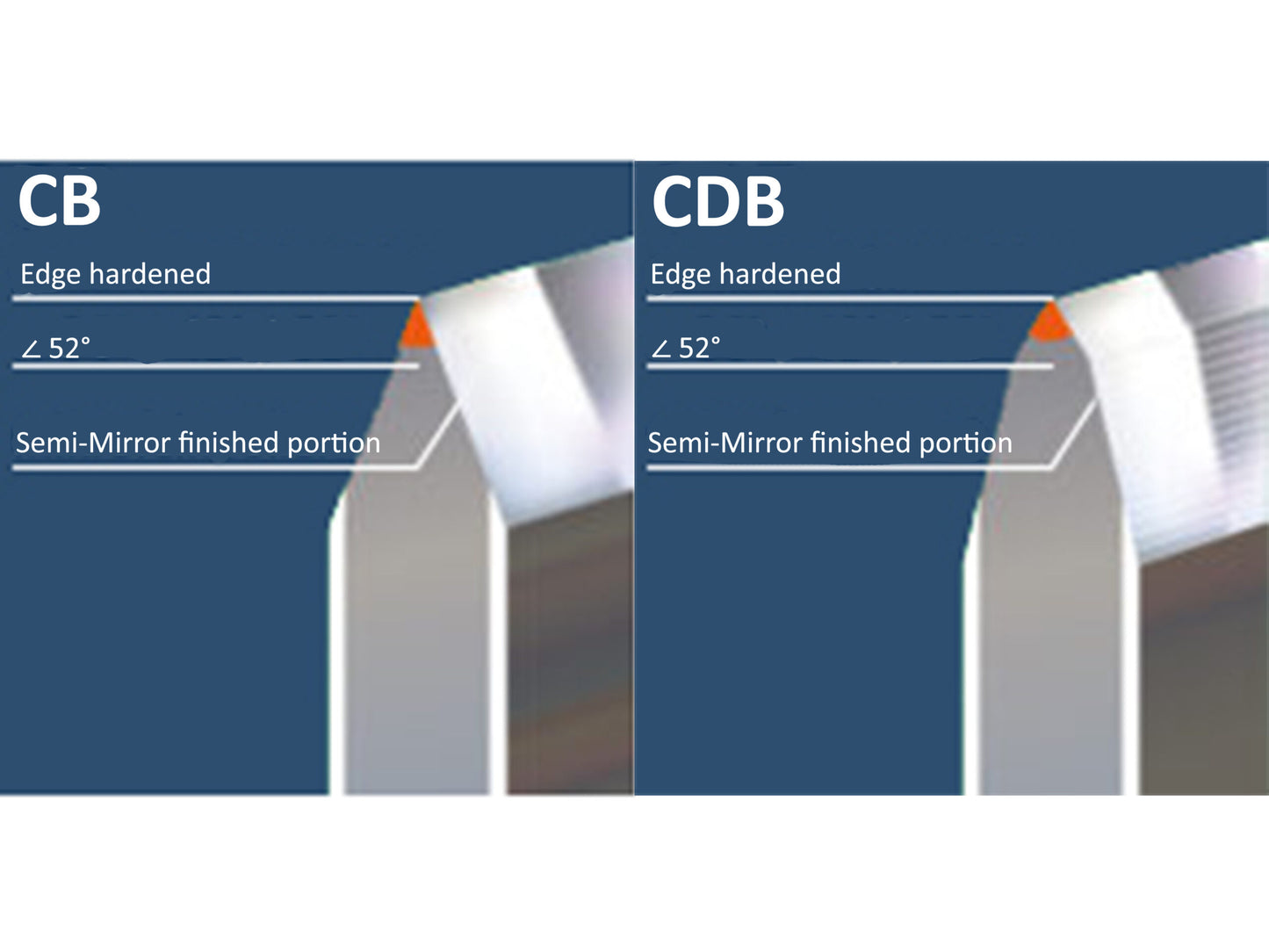

Edge shape

  • CB = Center bevel for all common cardboard materials
  • CDB = Center double bevel applicable for corrugated cardboard, plastics or rubber

Edge angle 52° = very stable & long service life

Availability: Coils and Metre Lengths

Purchase Unit

  • 2 pt = 100 m
  • 3 pt = 70 m

Coil Direction
