Cutting Rule R

Cutting Rule R

Request offer

Cutting rules from Japanese steel rule manufacturer TSUKATANI has been a leader in terms of quality since 1951. These are achieved through specially developed grinding processes, compliance with very tight tolerances and the use of best Japanese steel.

Cutting Rule R with fine grinding is mainly used when cutting plastic and laminated material. The vertical grinding reduces friction and dust formation.

View full details

Type R – The Special Cut

  • Version: fine grinding
  • The vertical grinding reduces friction and dust formation
  • Application for cutting plastics and laminated materials

Application Overview Cutting Rules

Characteristics

  • Thickness: 2 pt (0.71 mm) | 3 pt (1.05 mm)
  • Hardened cutting edge = longer service life

Degree of hardness

  • Body hardness: 345 HV / 35,5 HRC
  • Cutting edge hardness: 630 HV / 56,8 HRC

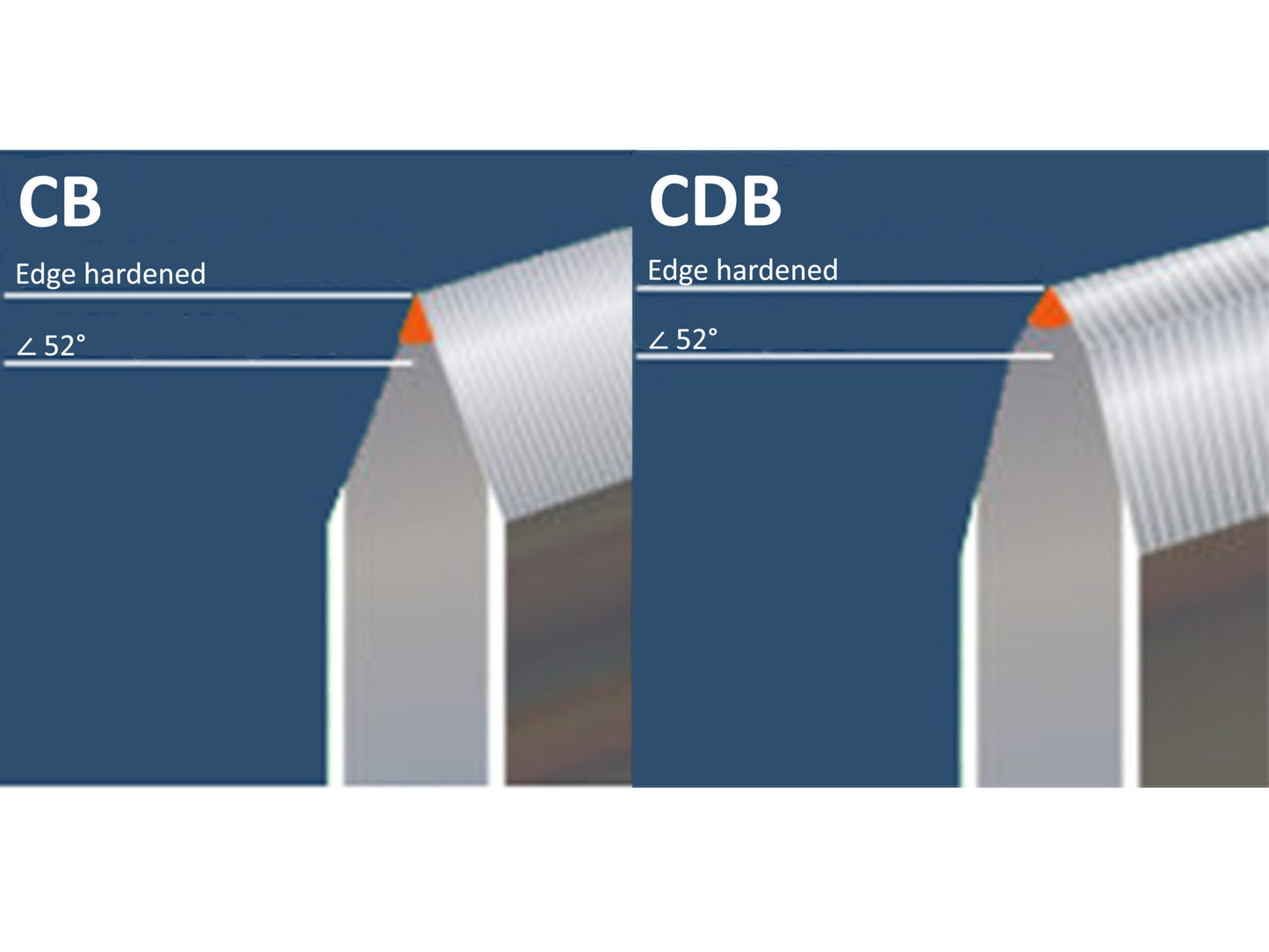

Edge shape

  • CB = Center bevel for all common cardboard materials
  • CDB = Center double bevel applicable for corrugated cardboard, plastics or rubber

Edge angle 52° = very stable & long service life

Availability: Coils and Metre Lengths

Purchase Unit

  • 2 pt = 100 m
  • 3 pt = 70 m

Coil Direction
