Cutting Rule Plus

Login to see prices

Cutting rules from Japanese steel rule manufacturer TSUKATANI has been a leader in terms of quality since 1951. These are achieved through specially developed grinding processes, compliance with very tight tolerances and the use of best Japanese steel.

Cutting Rule Plus with micro-fine grinding is characterised by a mirror polish of the cutting edges. This reduces the diecutting pressure and prevents the printed material from peeling or tearing off.

Request offer
Add to wishlist
  • Description
  • Specifications
  • Forms of Delivery
Description

Type Plus – The High-End Rule

  • Version: micro ginding
  • Mirror finish cutting edge to decrease the cutting force required
  • Ideal for preventing peeling and tearing off for printed material
Specifications

Characteristics

  • Thickness: 2 pt (0.71 mm) or 3 pt (1.05 mm)
  • Hardened cutting edge = longer service life

Degree of hardness

  • Body hardness: 345 HV / 35,5 HRC
  • Cutting edge hardness: 650 HV / 57,8 HRC

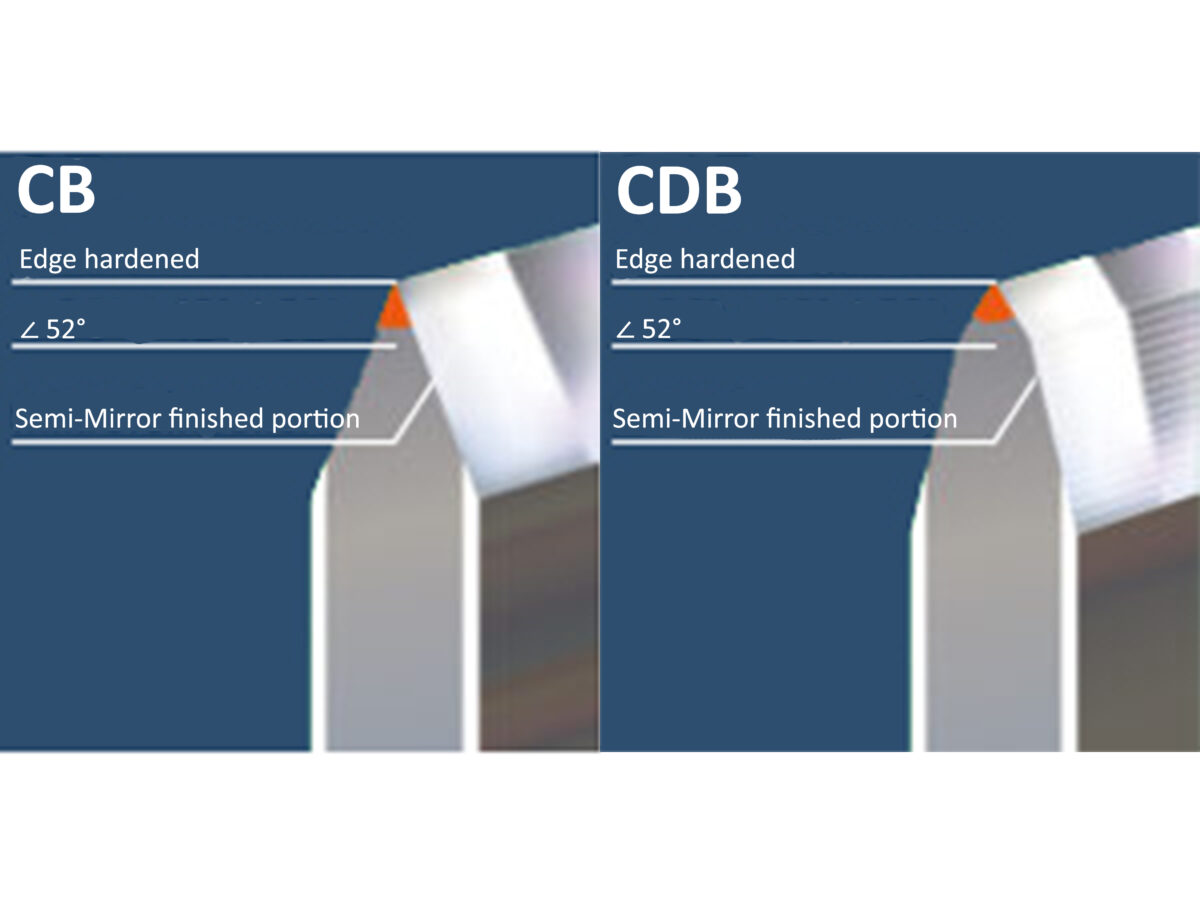

Edge shape

Edge angle

  • 52° = very stable & long service life



Forms of Delivery
  • Availability: Coils and Metre Lengths
  • Purchase Unit
    • 2 pt = 100 m
    • 3 pt = 70 m
  • Coil Direction
